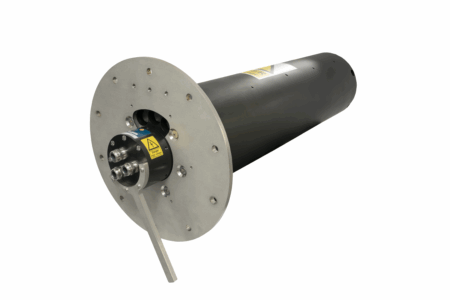

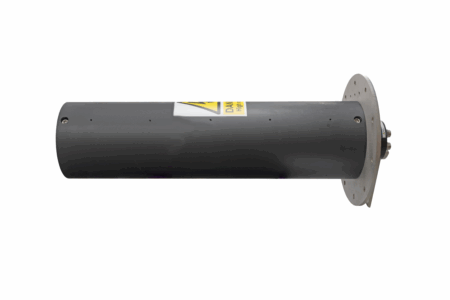

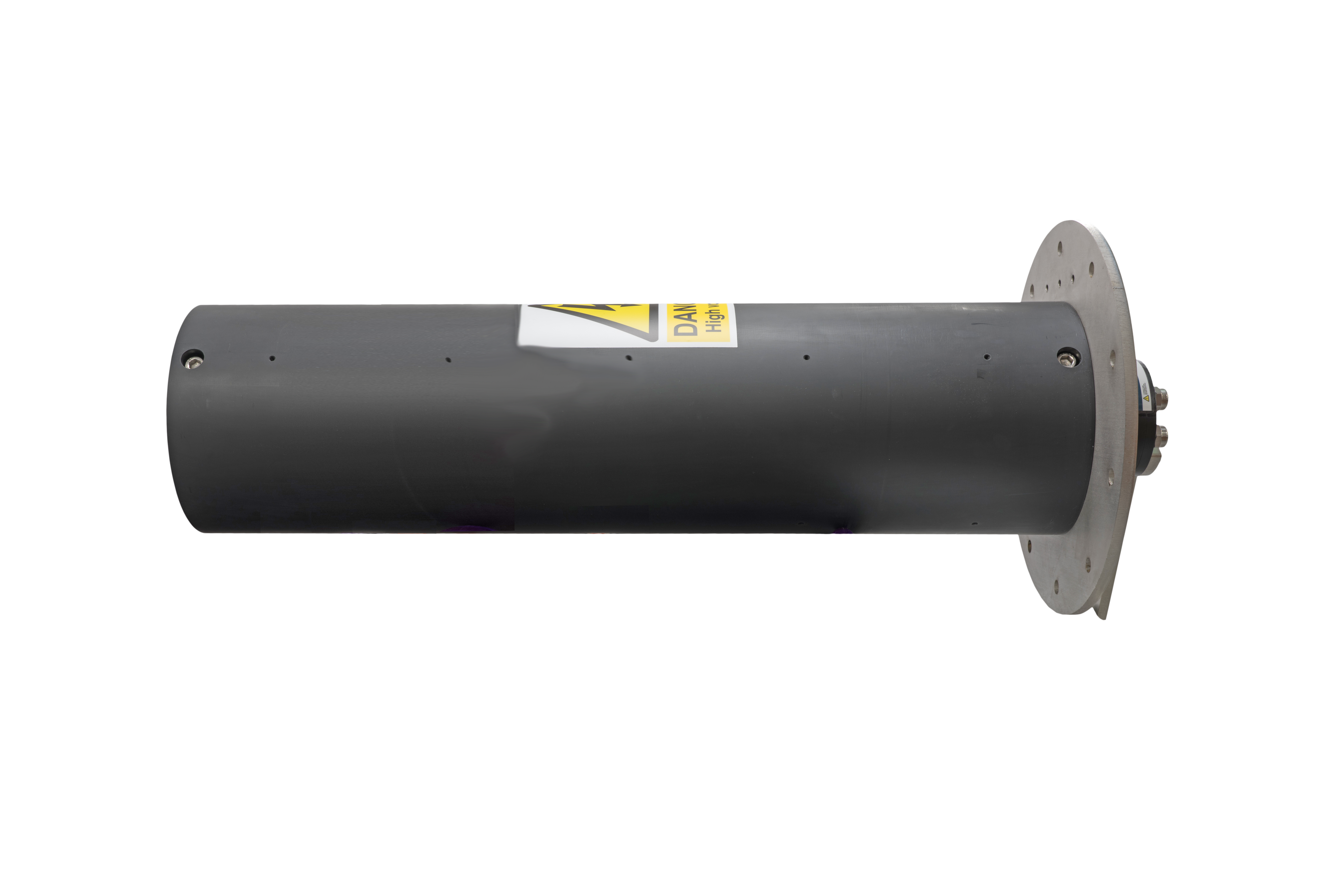

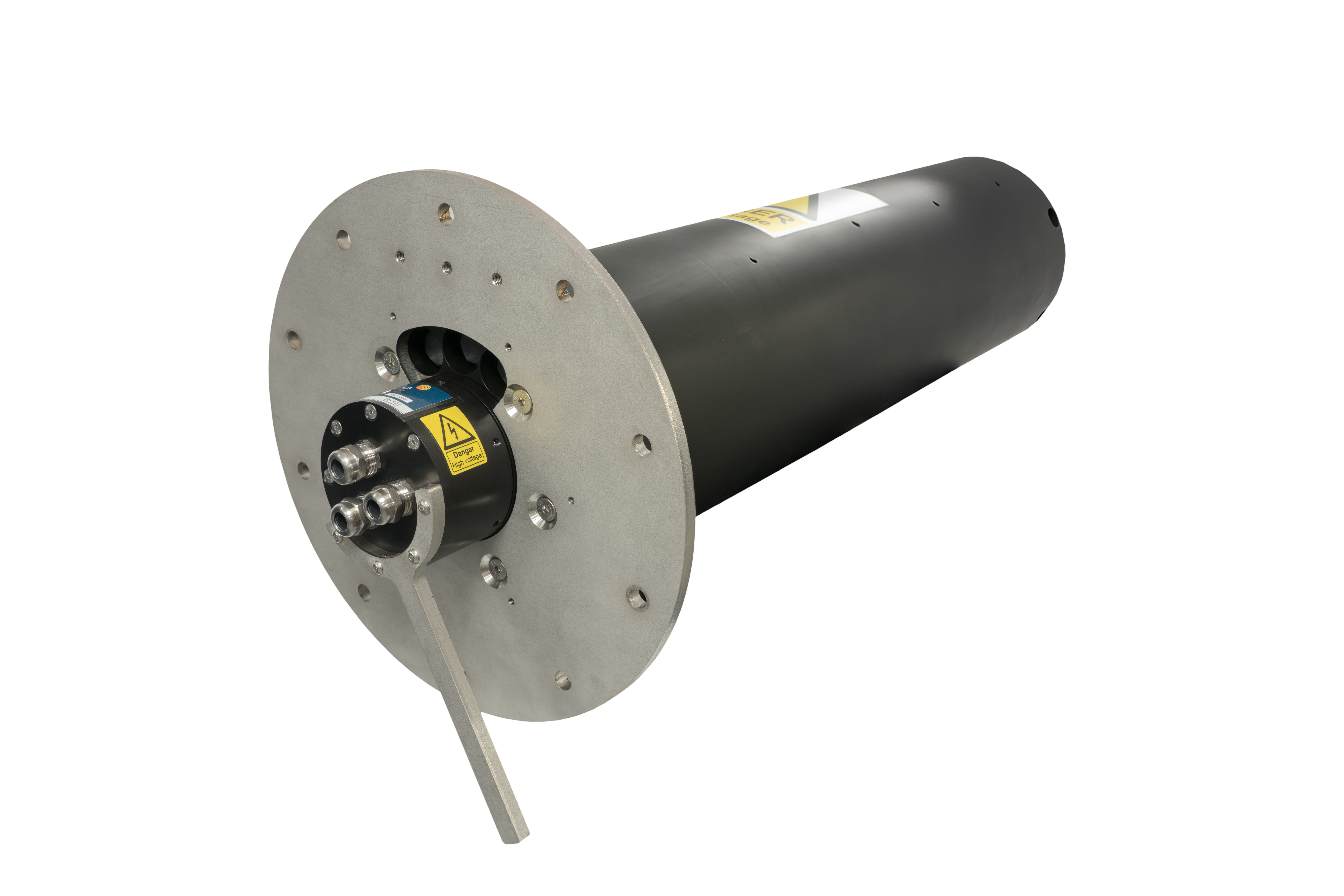

HVS-4000 HV Slip Ring

Model

The HVS-4000 High Voltage slip ring assembly has been developed to provide a rotary connection solution for survey operations using CSP- Nv (or CSP- SNv) plus Dura-Spark sound sources.

The HVS-4000 provides 3 HV rated and isolated rotary contacts. The chassis has been designed for the harsh
conditions associated with offshore geophysical survey operations. The HVS-4000 chassis materials are selected for intrinsic safety and sealed with O-rings to ensure a min of IP69 rating.

Speak to an expert Download data sheet

Key features

At a glance

Contactless rotary High Voltage, High pulsed current electrical contacts.
Designed for continuous operations with aae’s CSP-Nv and CSP-SNv plus Dura-Spark seismic source range.
3 independent HV contacts rated to 6KV isolation.
IP69 O-ring sealed inert Delrin chassis for safety.
Option for cable drum exits on outer or internal face.
Supplied with sealed HV Junction boxes for complete user contact free operations. Outer drum junction box is integrated to the CSP interlock circuitry for safety.

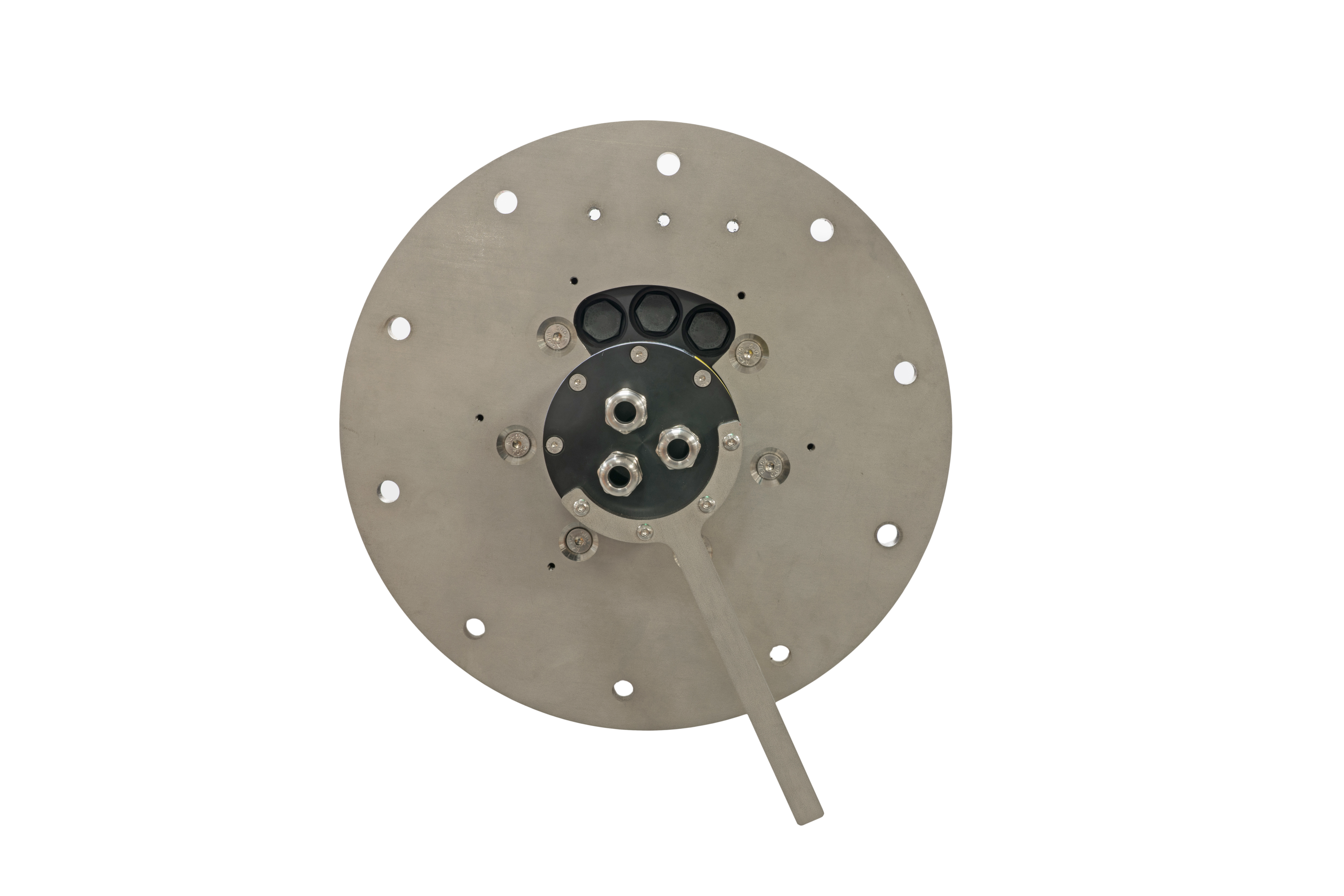

Mounting plates available for outer or inner side with
custom options available.
