Beacon Testers and Chargers
Model

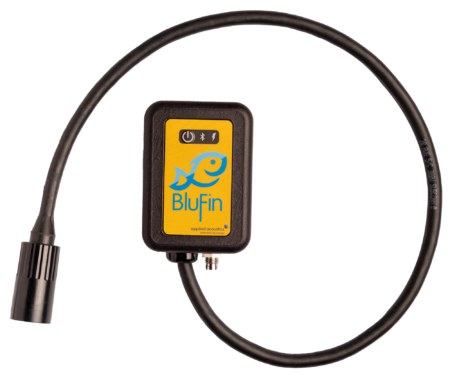

The 2082 BluFin is a pocket-sized device with Bluetooth connectivity for the charging and configuration of 1100 and 1000 series Mini beacons.

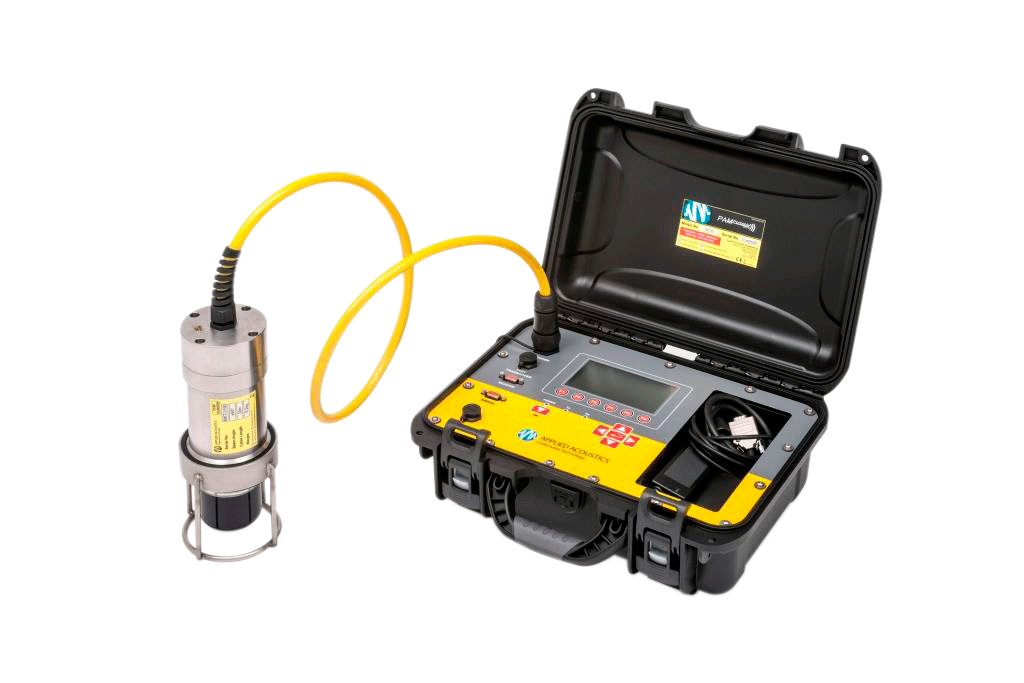

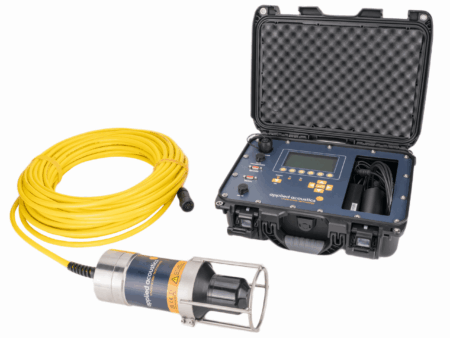

The 3515 PAM Portable has been developed to meet the harsh operating conditions associated with offshore marine operations. It is housed in a water-proof rugged enclosure with a clear LCD display and splashproof keypad for on-deck operations.

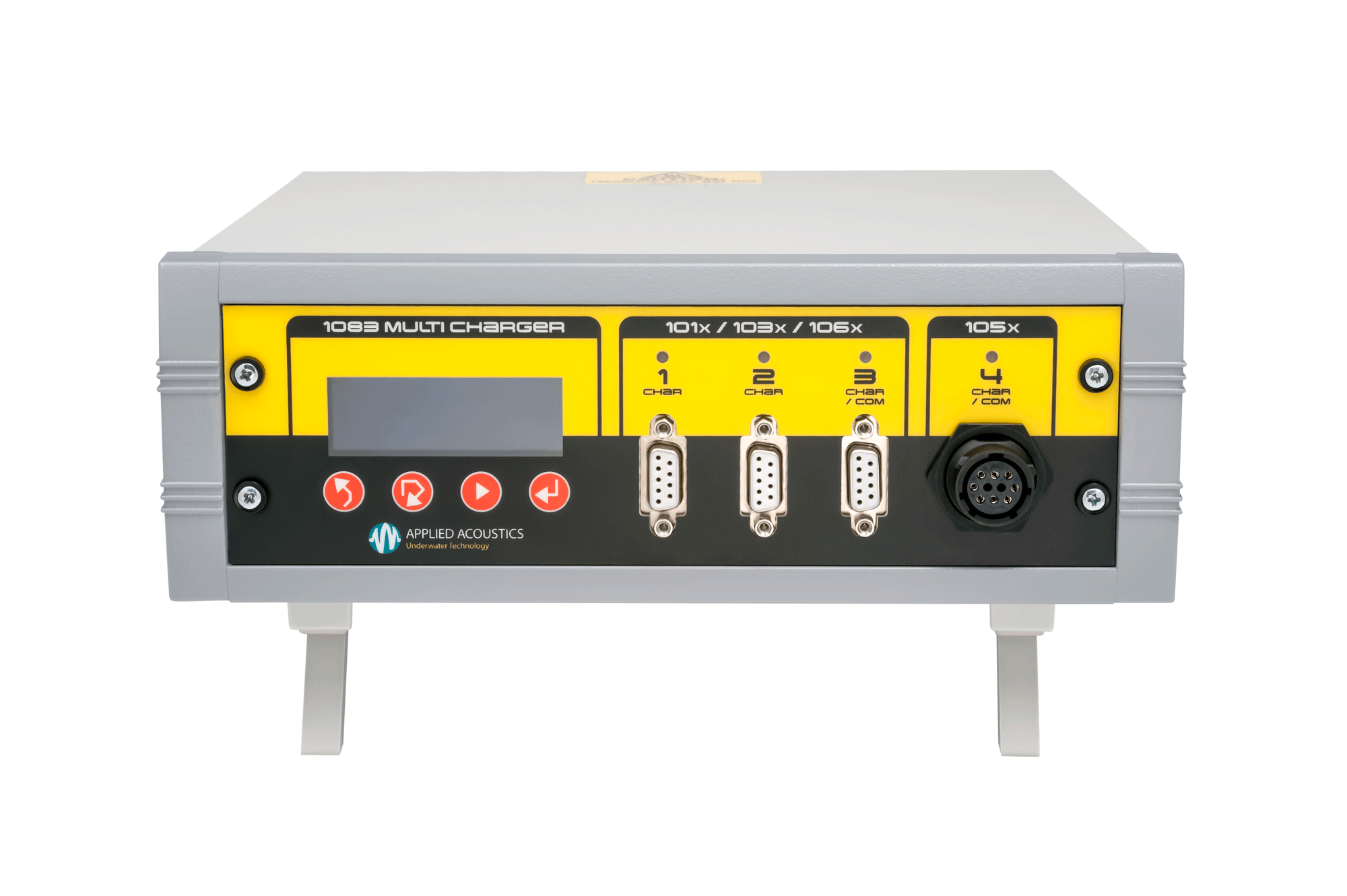

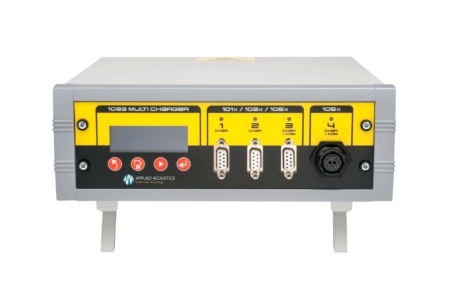

Read MoreThe 1083 Multi-Charger provides independent simultaneous charge, configuration and test for multiple beacons.
Read More
1
3
At a glance
- Bluetooth connectivity
- Ruggedised, compact design
- Easy configuration of 1100 and 1000 series applied acoustics positioning beacons
- Intuitive charging of applied acoustics positioning beacons, no set-up required
- Charge monitoring and diagnostic functionality
- Reduces equipment set-up time
- Bespoke design for offshore environments
- Long battery life
Positioning Beacons
2082 BluFin
At a glance
- Spread spectrum compatible
- Robust construction
- Clear intuitive interface
- Configures Mini, Midi, Fatboy
and 1500 Series beacons - Optional low frequency compatibility
Applications
- Testing and configuration of
beacons prior to deployment - Subsea ranging and
relocation - Command of acoustic release transponders
- Acoustic telemetry/command and control applications
- Data gathering
Positioning Beacons
3515 PAM Portable c/w 3190 Dunker (MF) or 3191 Dunker (LF)
At a glance
- Independent fast charging of multiple beacons
- Easy to operate with 4 buttons and backlit LCD display
- Dedicated charger for the spread spectrum Seabed beacons
- Responder test functions
- Compatible beacon trickle charge function
Positioning Beacons
applied acoustics
