200 Series MiniPod, Submersible GNSS
The 201G MiniPod is a lightweight, ruggedised Tri-band GNSS receiver with configuration options. These allow for a RTK base, RTK rover and RTK moving base solutions to be used with more than one MiniPod in operation. Additional external sensor information can be added to the wireless protocol.
Read MoreThe 201G/203G MiniPod is a lightweight, ruggedised Tri-band GNSS receiver with configuration options. These allow for a RTK base, RTK rover and RTK moving base solutions to be used with more than one MiniPod in operation. Additional external sensor information can be added to the wireless protocol.
Read MoreThe 202G/204G MiniPod is a lightweight, ruggedised Tri-band GNSS receiver with configuration options. These allow for a RTK base, RTK rover and RTK moving base solutions to be used with more than one MiniPod in operation. Additional external sensor information can be added to the wireless protocol.
Read MoreThe 202G/204G MiniPod is a lightweight, ruggedised Tri-band GNSS receiver with configuration options. These allow for a RTK base, RTK rover and RTK moving base solutions to be used with more than one MiniPod in operation. Additional external sensor information can be added to the wireless protocol.
Read More
At a glance
- Robust GNSS receiver with integrated antenna
- Multi band L1 + L2 +L5 receiver
- RTK Moving Base and Rover Operation
- Multi constellation GNSS receiver
- External Sensor Integration
- Submersible, 50m rated
- Wide area corrections or external RTCM
- Assembly shock rated to 75G for field endurance in harsh conditions
- Worldwide RF remote wireless data options
Our RFR Receiver can be used to support this product.
Applications
- Seismic streamer head and tail positioning
- Seismic source positioning
- Offshore construction
- Ideal for subsea excavation vehicles (jetting & trenching), and surface positioning of towed sensors such as magnetometers, operating in shallow waters

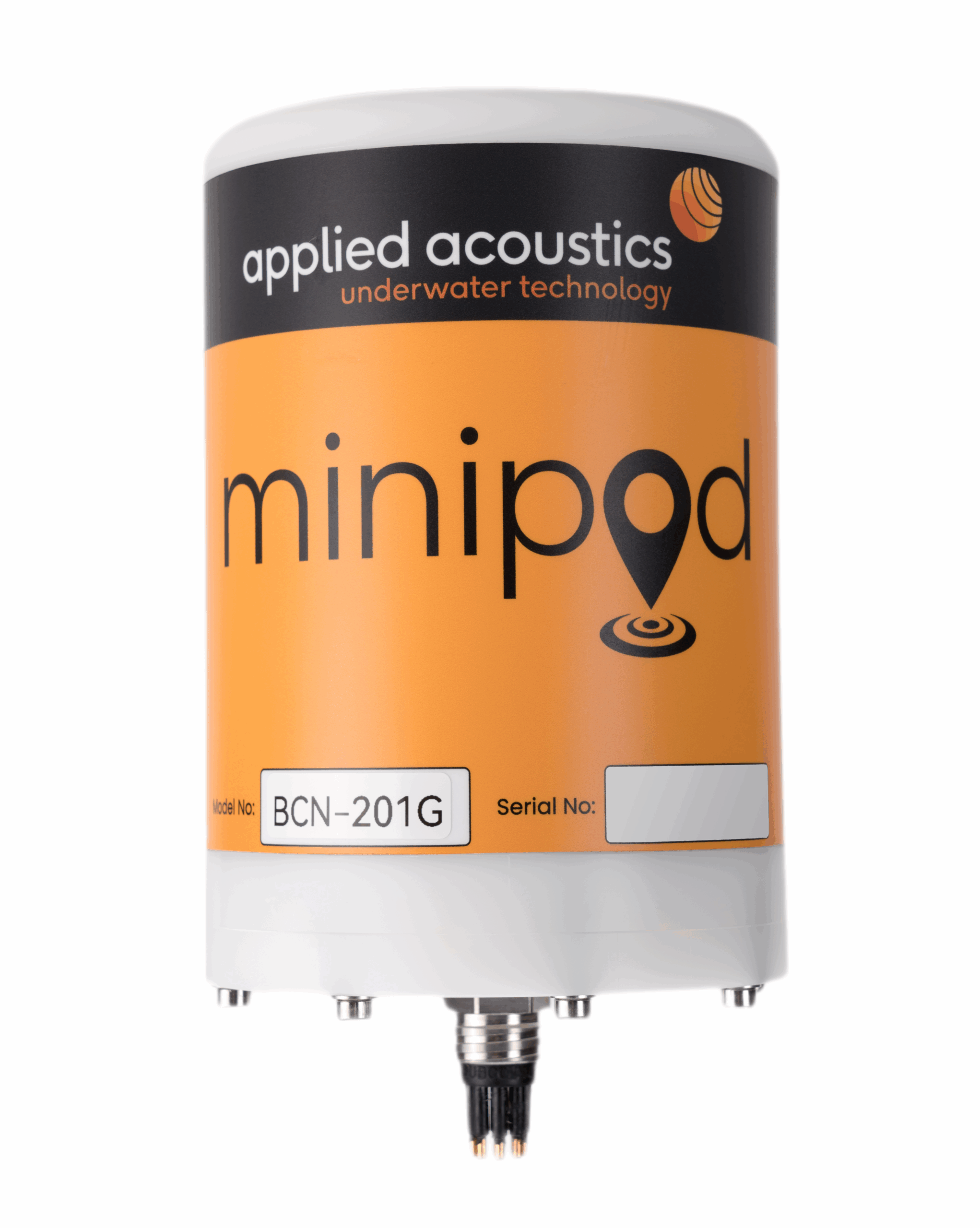

201G/203G MiniPod
At a glance
- Robust GNSS receiver with integrated antenna
- Multi-band L1 + L2 + L5 receiver
- RTK Moving Base and Rover Operation
- Multi-constellation of positioning satellites
- External Sensor Integration
- Submersible, 1000m rated
- Wide area corrections or external RTCM
- Assembly shock rated to 75G for field endurance
in harsh conditions - Worldwide RF remote wireless data options
- Dual antenna positioning
- Heading information
- OmniDirectional wireless antenna
Applications
- Seismic streamer head and tail positioning
- Seismic source positioning
- Offshore construction
- Ideal for subsea excavation vehicles (jetting &
trenching), and surface positioning of towed sensors
such as magnetometers, operating in shallow waters - Vehicle positioning when towing items offshore
(e.g. cabling)
