Energy Sources, CSP Units

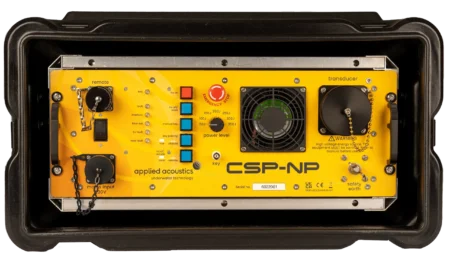

The CSP-NP is a compact, lightweight seismic power supply. Recently upgraded, it incorporates reverse voltage technology that allows compatibility with the Dura Spark compact high resolution sound sources. The CSP-NP is ideal for small vessel coastal geophysical surveys.

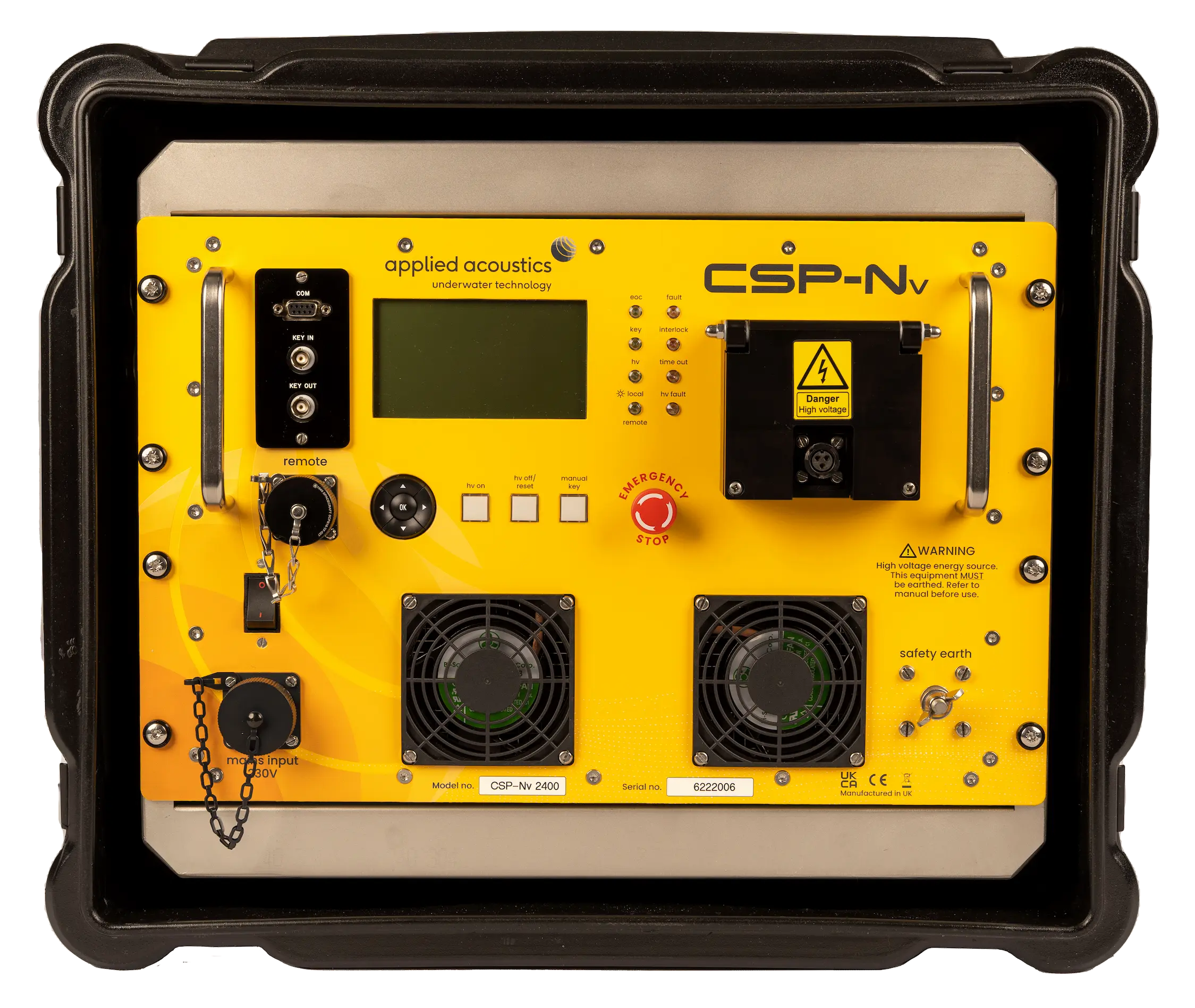

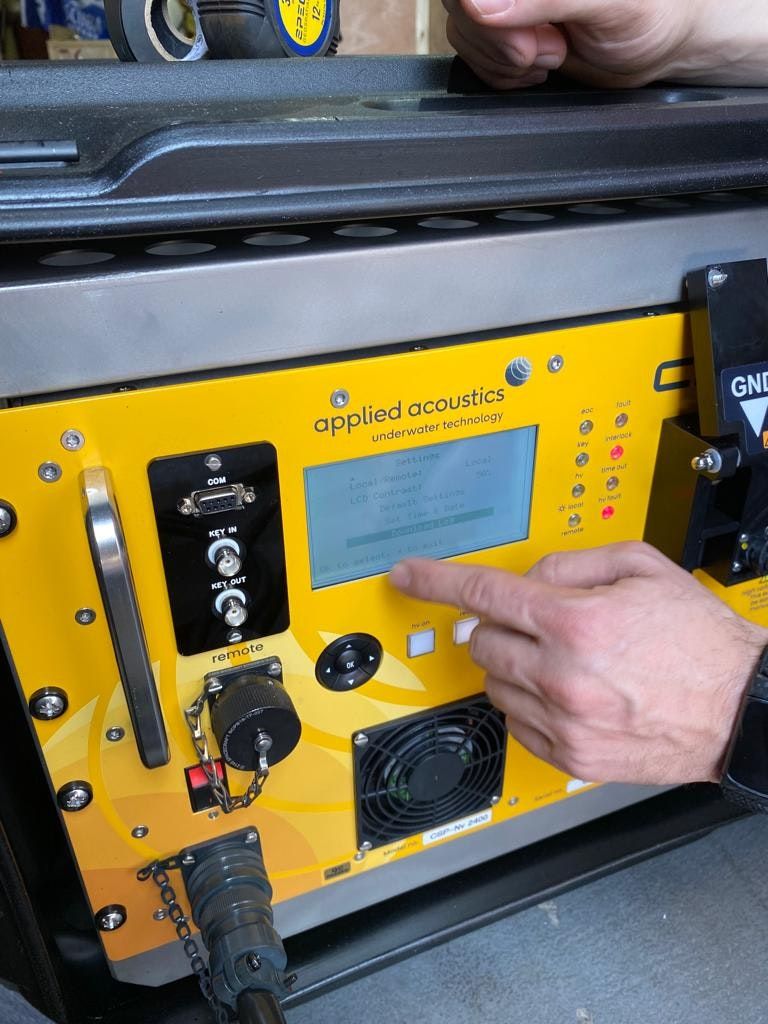

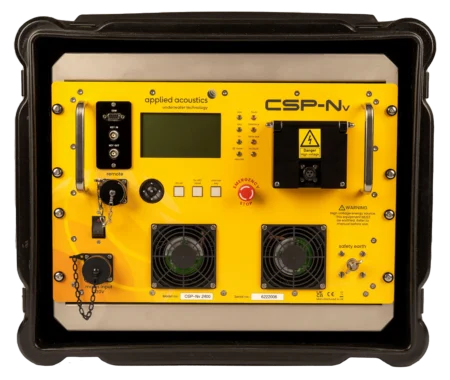

The CSP-Nv incorporates microprocessor control and configuration for greater flexibility and reliability, whilst retaining a fail-safe logic design. It is the driving force behind applied acoustics’ Dura-Spark range of sound sources, and is also suitable for use with the S-Boom and single plate boomer systems.
The CSP-SNv has been engineered for use with the dual deck Dura-Spark UHD 400+400 catamaran, providing flip-flop and fire delay modes of operation. It offers a solution to the industry requirement of acquiring UHR seismic data in challenging environments with a ≤1m shot point interval.
The CSP-S12000 is a compact ‘all-in-one’ power source for marine sparker applications, specifically the applied acoustics Delta Sparker. The high charge rate allows for fast, high-energy sound pulses from the sparker that is used in deep water geohazard surveys
At a glance
- Boomer and Dura-Spark compatibility
- Incorporates dual-voltage technology for exceptional versatility
- Variable Input Power Circuitry for ‘soft start’
- Proprietary pulse shaping circuitry for high resolution data
- Additional safety/protection features
- All settings externally selectable
- LED fault indicators
- High current and voltage solid state (semiconductor) discharge method
- Meets EC emissions regulations enabling interference-free field use
- Supplied in robust transit case, with HV junction box (HVJ2001), mains lead and HV connector plug
Applications
- General coastal, river, canal or estuary survey
- Hydrographic sediment investigation
- Cable and pipeline route survey
At a glance
- Microprocessor configuration and control.
- Intuitive user interface, with LCD display and LED indicators.
- Enhanced operator system feedback
- User programmable ‘soft start’
- Master / Slave Key Support
- Additional safety/protection features
- Programmable voltage technology allows operator tuning to suit application
- All settings externally selectable
- High current and voltage solid state (semi- conductor) discharge method
- Debug log and diagnostics.
- Meets EC emissions regulations enabling interference-free field use
- Supplied in robust transit case, with HV junction box (HVJ3004) and mains lead.
Applications
- General coastal, river, canal or estuary survey
- Hydrographic sediment investigation
- Cable and pipeline route survey
- High and ultra high resolution multi-channel survey
- Geophysical windfarm site survey
At a glance
- Microprocessor configuration and control.
- Intuitive user interface, with LCD display and LED indicators.
- 4000J per second peak charge rate
- Fire delay mode
- Flip-flop mode
- User programmable ‘soft start’
- Master / slave key support
- Additional safety/protection features
- Programmable voltage technology allows operator tuning to suit application
- High current and voltage solid state (semiconductor) discharge method
- Debug log and diagnostics.
- Meets EC emissions regulations enabling interference-free field use
- Supplied in robust transit case, with HV junction box (HVJ3004) and mains lead.
Applications
- High and ultra high resolution multi-channel survey
- Cable and pipeline route survey
- Geophysical windfarm site survey
- Geohazard survey
CSP-SNv1250
At a glance
- High energy level for increased penetration
- High current and voltage solid state (semi-conductor) discharge method
- Meets EC emissions regulations enabling interference-free field use
- All settings externally selectable
- No requirement for extra separate capacitor bank
- Variable Input Power Circuitry for ‘soft start’
- Additional safety/protection features
- Supplied in robust transit case, with HV junction box (HVJ3000), mains lead and HV connector plug
Applications
- Deep water geohazard survey
